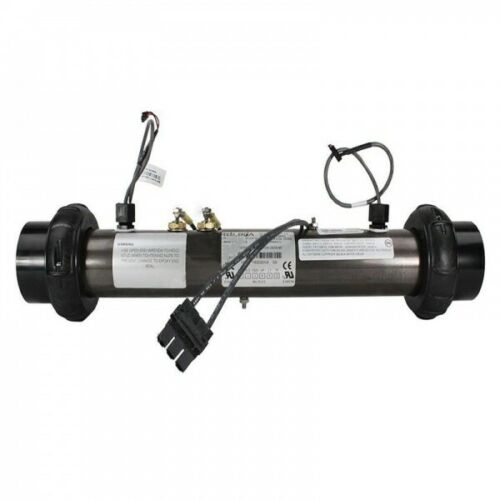

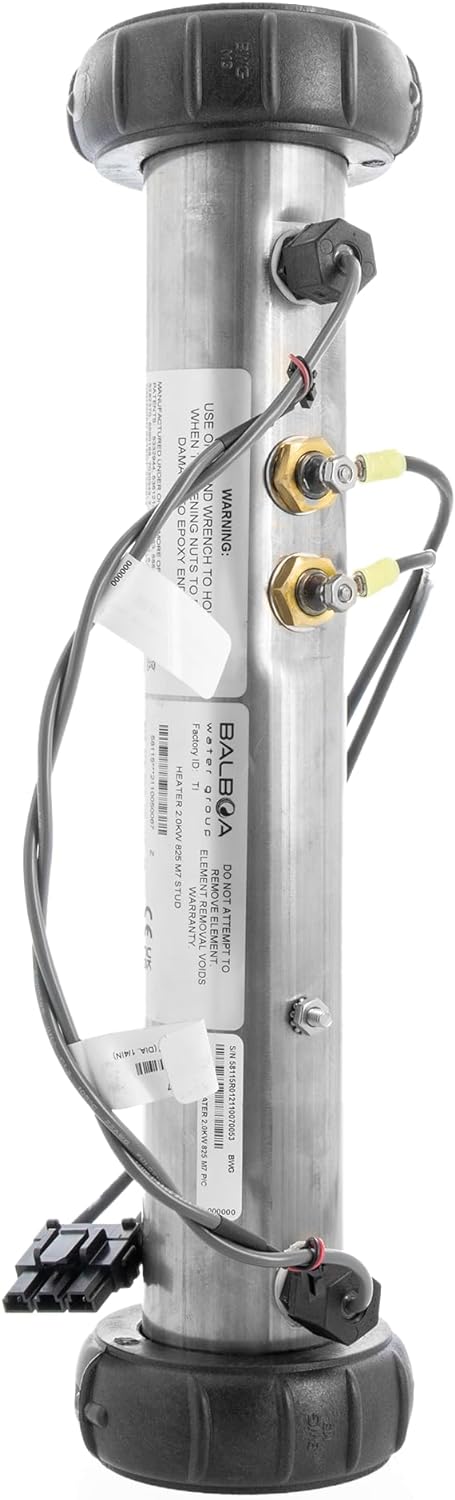

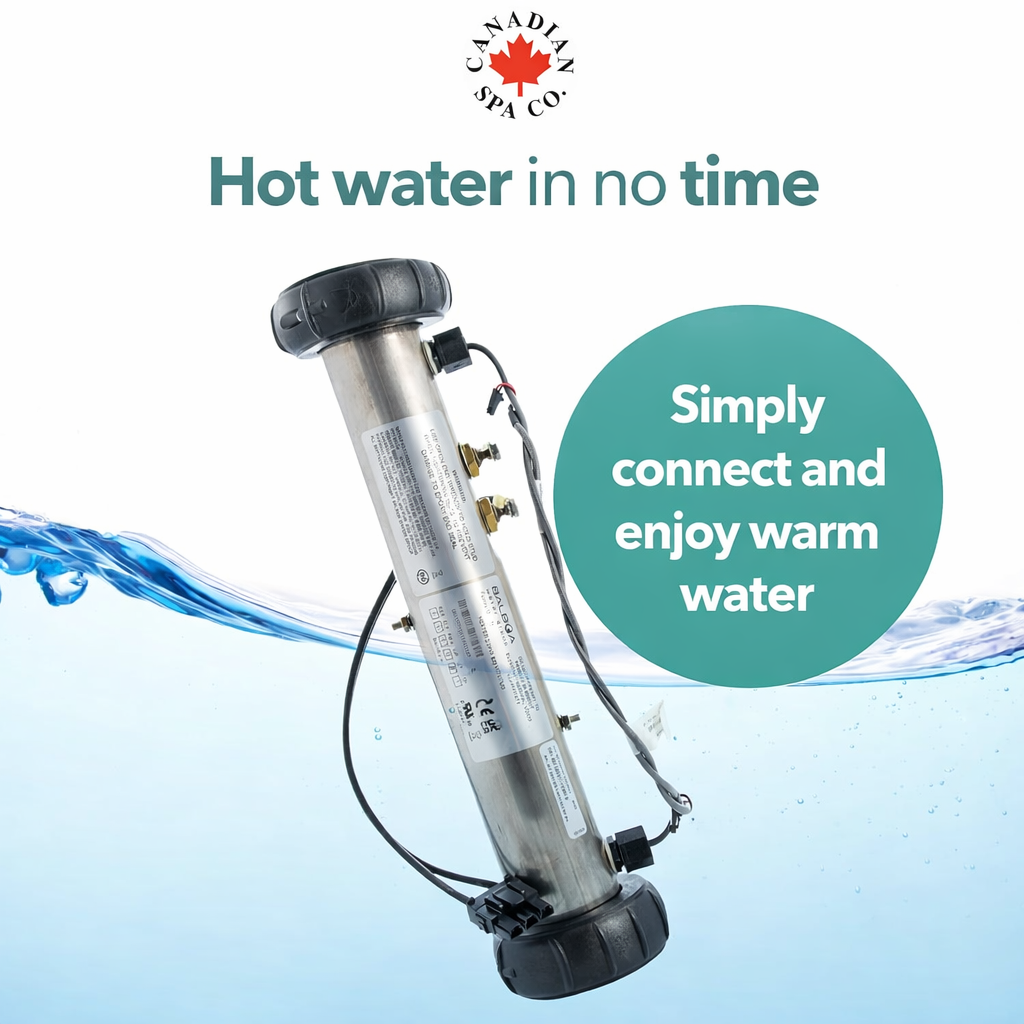

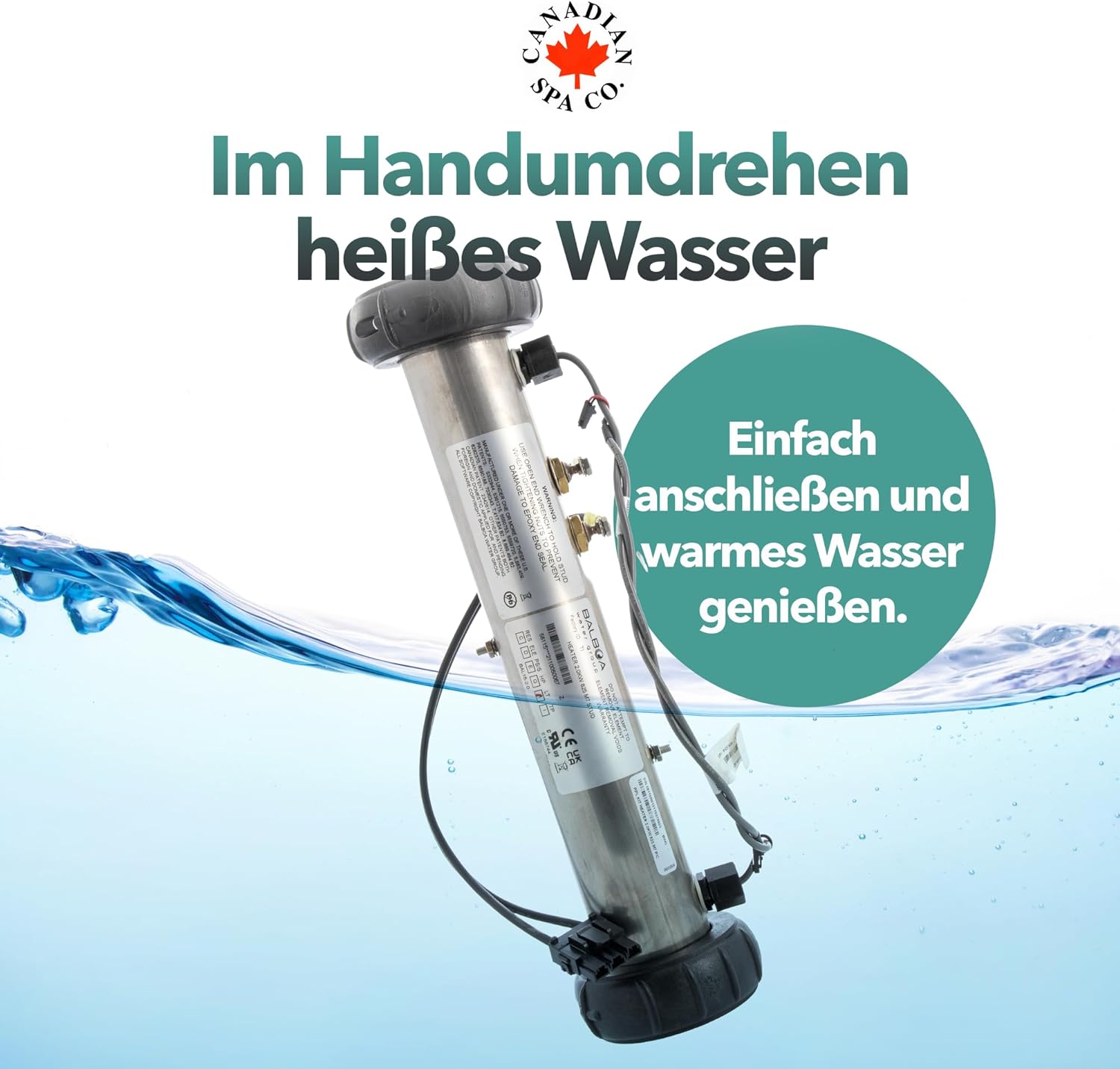

BP 600 /2100 series Balboa Heater with Molex Plug (M7) Plug 'n' Click 2KW / 3KW / 5.5KW
BP 600 /2100 series Balboa Heater with Molex Plug (M7) Plug 'n' Click 2KW / 3KW / 5.5KW
SKU:KK-10286
Couldn't load pickup availability
BP 600 /2100 series Balboa Heater with

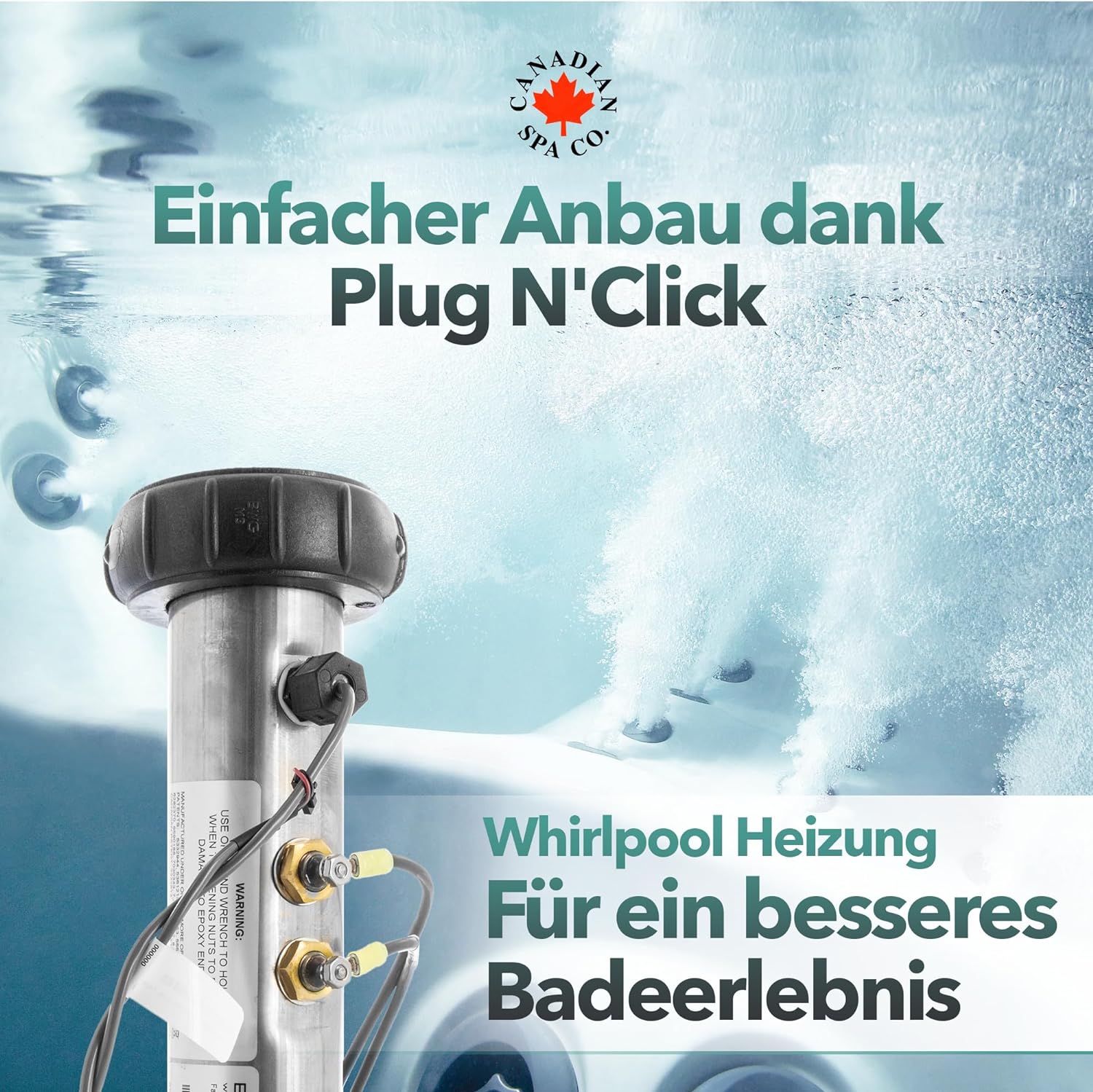

Molex Plug (M7) Plug 'n' Click
2KW / 3KW / 5.5KW
Fits all current BP600 and BP2100 packs. Use with Adaptor Cable KK-11298 to convert older GL and GS series Balboa Packs to the new Plug'n'Click style.

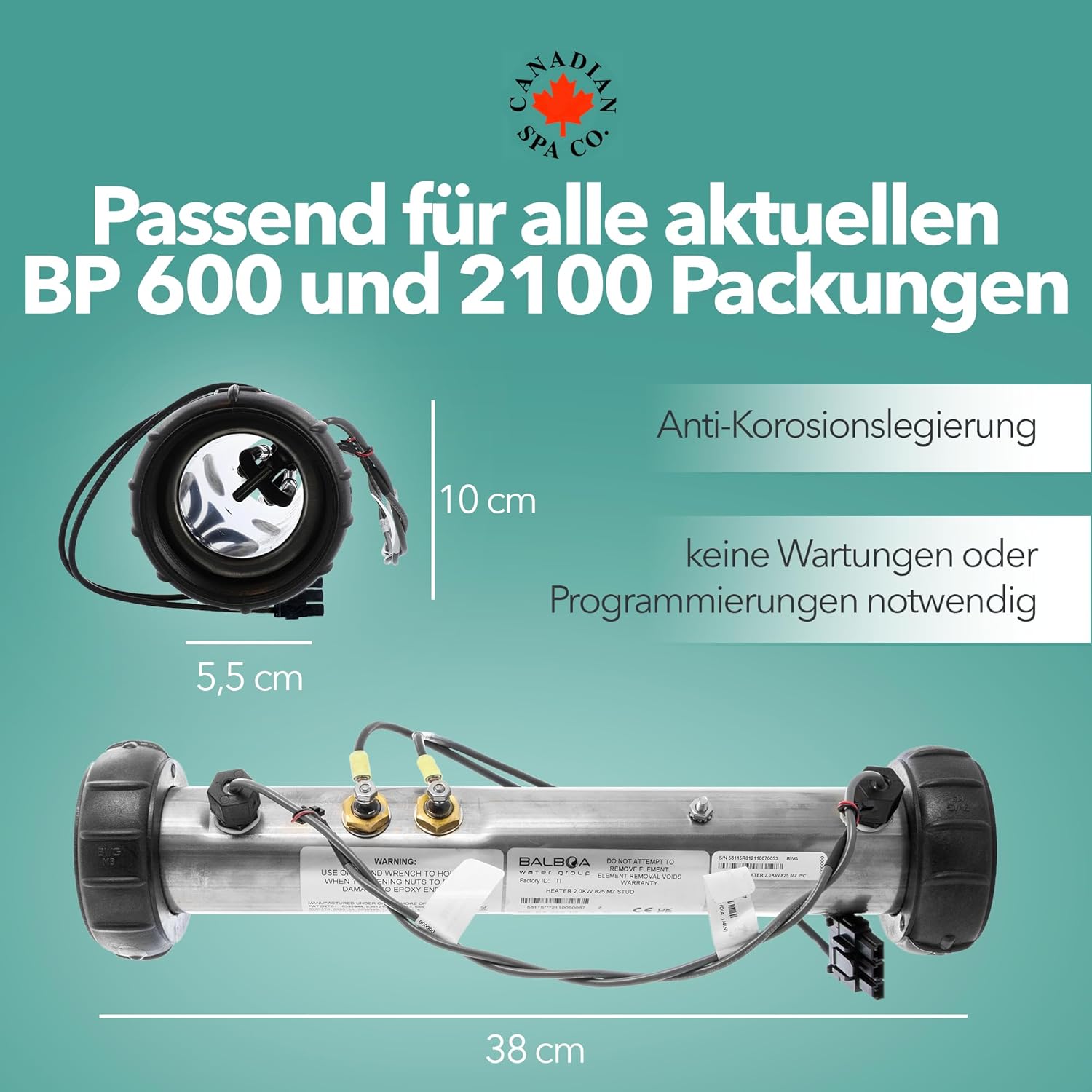

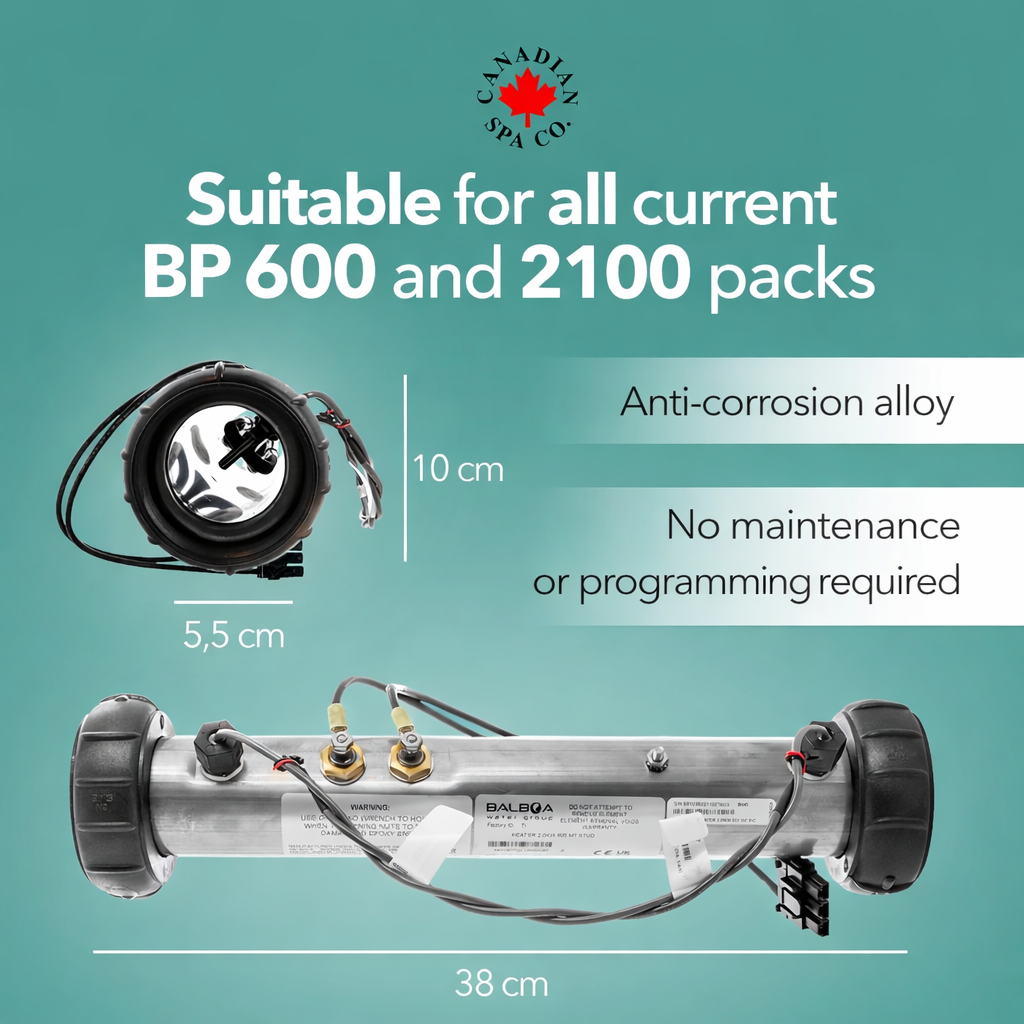

Length: 15 inches
Diameter: 2 inches
Distance Between terminals: 1.25 inches
Complete length (inc. unions): 19.5 inches
New Systems
Direct replacement for Balboa BP500/501, BP600/601, and BP2100 systems
Older Systems
These heaters are the replacement for the now-discontinued Balboa M7 Heater with Studs - 2Kw & 3Kw (GS-GL) used in older Balboa systems.
Also fits older style GS and GL series packs by using an adaptor cable
KK-11298.

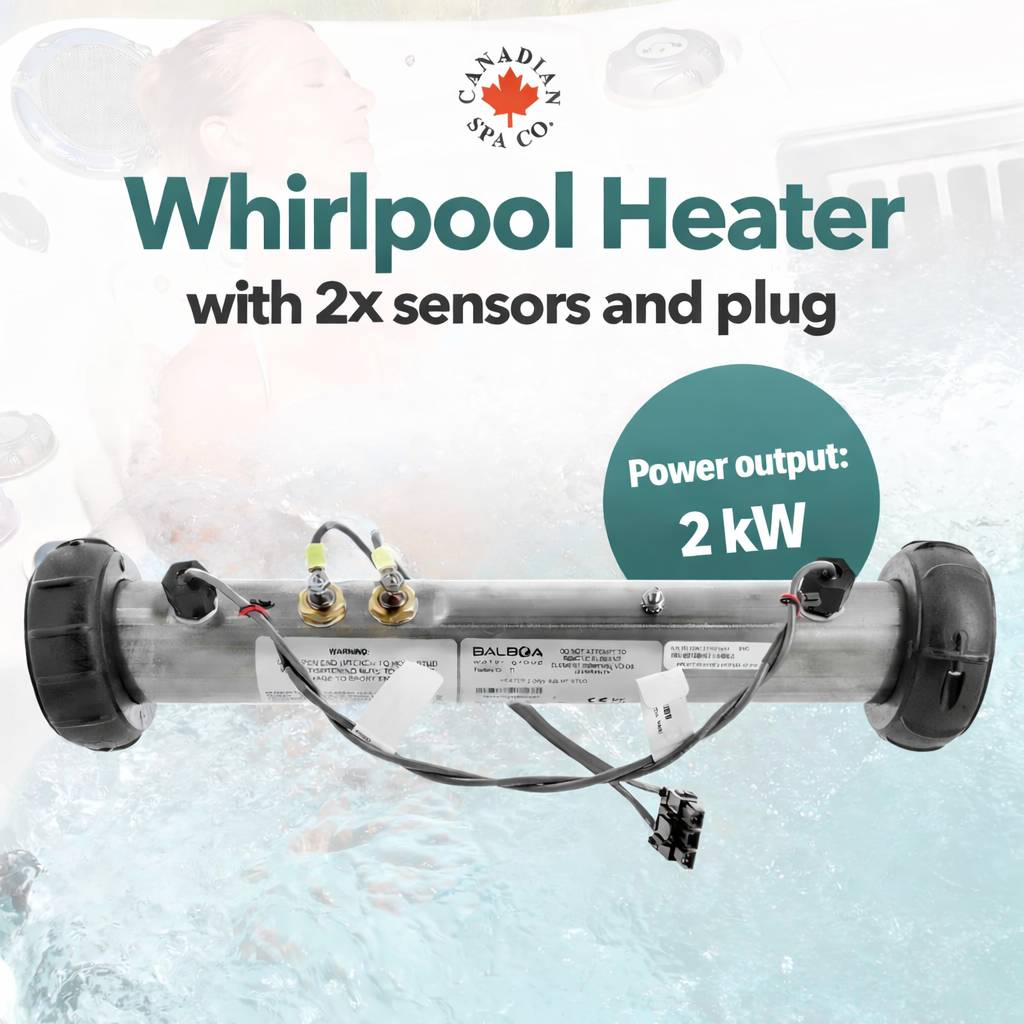

Always match the heater number to ensure the correct specification, the 2KW version can be used with GS-GL packs such as GS500, 500Z, 501, 501Z systems, spas that use this heater include Spaform, Hydrospa, Canadian, Aegean, Catalina, Hydropool, , Marquis Spa, , Leisurite, Leisure Bay, Signature Spas, Hot Tubs Direct, Wellis P/N ACM0552
2KW heaters may carry any of these part numbers: 58115, 58115-01, 58145, 55091, 55093-01, 55091-01, 55093, 55165-02, 55165-03, 55183-01, 55183-02, 55093-02, 55248, 55248-01, 55248-02, 55248-03, 55425, 55881, 55165-01, 55881-01, 55883, 56240, 56304, 58122, 58395

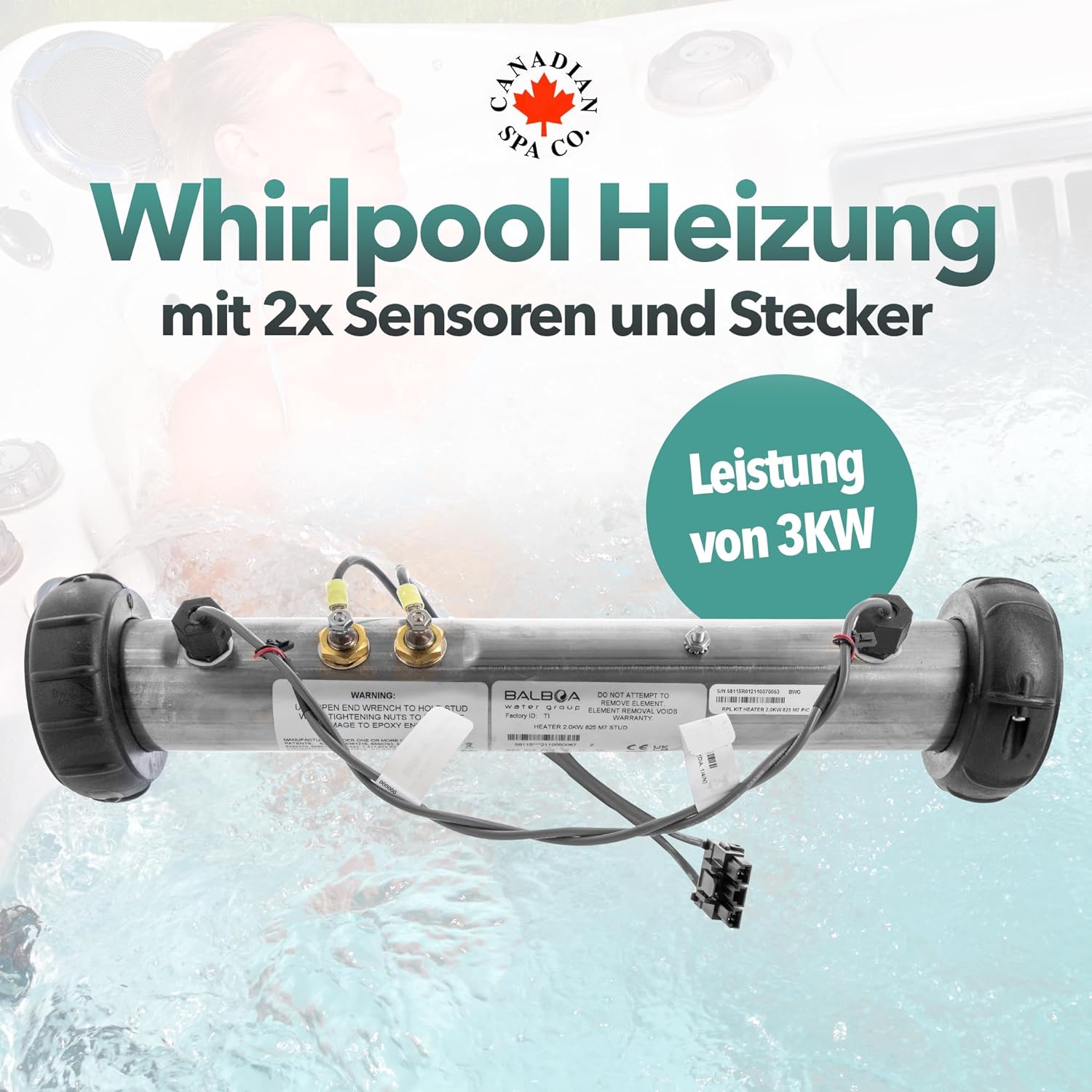

Always match the heater number to ensure the correct specification, the 3KW version can be used with GS500, 500Z, 501, 501Z (3.0KW only), 501SZ, 510, 510S, 510Z, 510SZ, 511SZ, 523DZ, GL2000 mach 3, GL2001 mach 3 systems, it is used in spa including Spaform, Hydrospa, Canadian, Aegean, Catalina, Hydropool, , Marquis Spa, , Leisurite, Leisure Bay, Signature Spas, Hot Tubs Direct. Now readily used in the BP packs.
3KW and 5,5KW versions may carry any of these part numbers: 58107, 58118, 58141, 53340, 53340-01, 53340-02, 53340-03, 53340HC1, 53355, 53355-01, 53355-02, 53355-03, 53355-04, 53340-04, 53355-HC, 53355HC1, 53529, 53529-01, 53529-02, 53529-03, 53340-HC, 53555, 53555-01, 53555-02, 53641-01, 53641-02, 53641-03, 59008-02, 53687, 53687-01, 53687-02, 53891, 53891-01, 53893, 59008-01, 53893-01, 53936, 53936-01, 53955, 53955-01, 53955-02, 59008, 53955-03, 53996-01, 54204, 54204-01, 54204-02, 54204-03, 56331, 54258, 54295, 54330, 54330-01, 54330-02, 54406-01, 56289-01, 54406-02, 54406-03, 54406-04, 54481, 54481-01, 54481-02, 56289, 54481-03, 54509, 54509-01, 54509-HC, 54509HC1, 54511, 54515-02, 54517, 54517-01, 54517-02, 54517-03, 54517-HC, 54517HC1, 54515, 54517HC2, 54517HC3, 54519, 54519-01, 54519-02, 54521, 54515-01, 54521-01, 54521-02, 54586, 54648, 54648-01, 54650, 54511HC1, 54650-01, 54700, 54751, 54751-01, 54752, 54752-01, 54511-HC, 54763, 54763-01, 54848, 55048, 55048-01, 55048-02, 54511-01, 55048-03, 55048-04, 55058, 55060, 55062, 55062-01, 55076, 55078, 55078-01, 55082, 55082-01, 55089, 55106, 55076-01, 55106-01, 55127, 55165, 55183, 55186, 55186-01, 55074-01, 55216, 55216-01, 55216-02, 55216-03, 55250, 55250-01, 55074, 55292, 55399, 55401, 55401-01, 55403, 55403-01, 55070, 55406, 55408, 55410, 55415, 55415-01, 55421, 55062-02, 55421-01, 55423, 55423-01, 55446, 55454, 55461, 55556, 55556-01, 55572, 55648, 55650, 55652, 55660, 55498, 55660-01, 55670, 55845, 55845-01, 55874, 55892, 55485, 55896, 55898, 55907, 55942, 55942-01, 56010, 55474-01, 56010-01, 56015, 56078, 56078-01, 56084, 56086, 55474, 56104, 56104-01, 56123, 56123-01, 56133, 56140, 55461-01, 56158, 56170, 56172, 56250, 56251, 56281
This heater does NOT fit BP100 or BP 200 packs.
