Big Red LX 5HP 2-Speed Pump WP500-II
Big Red LX 5HP 2-Speed Pump WP500-II
Couldn't load pickup availability

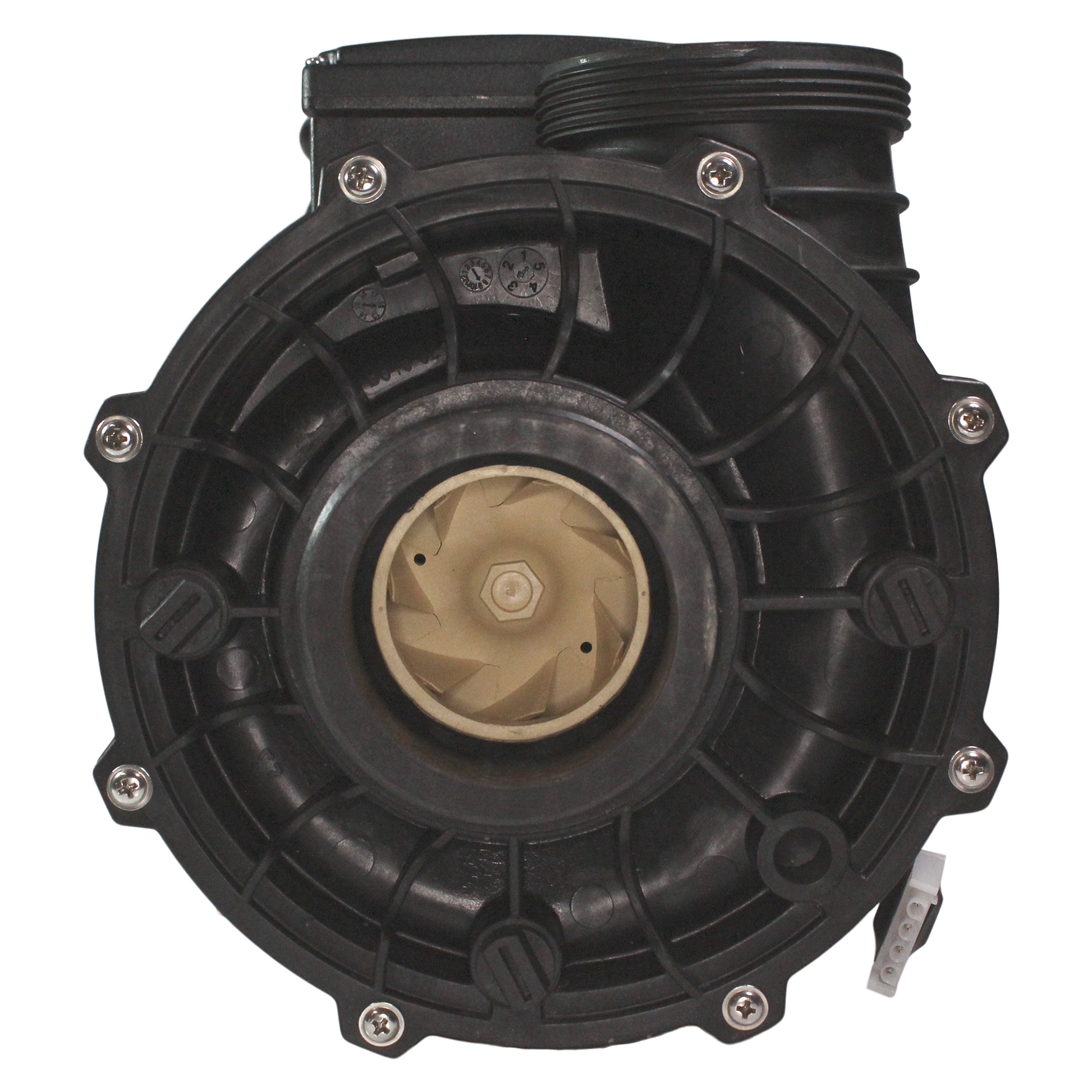

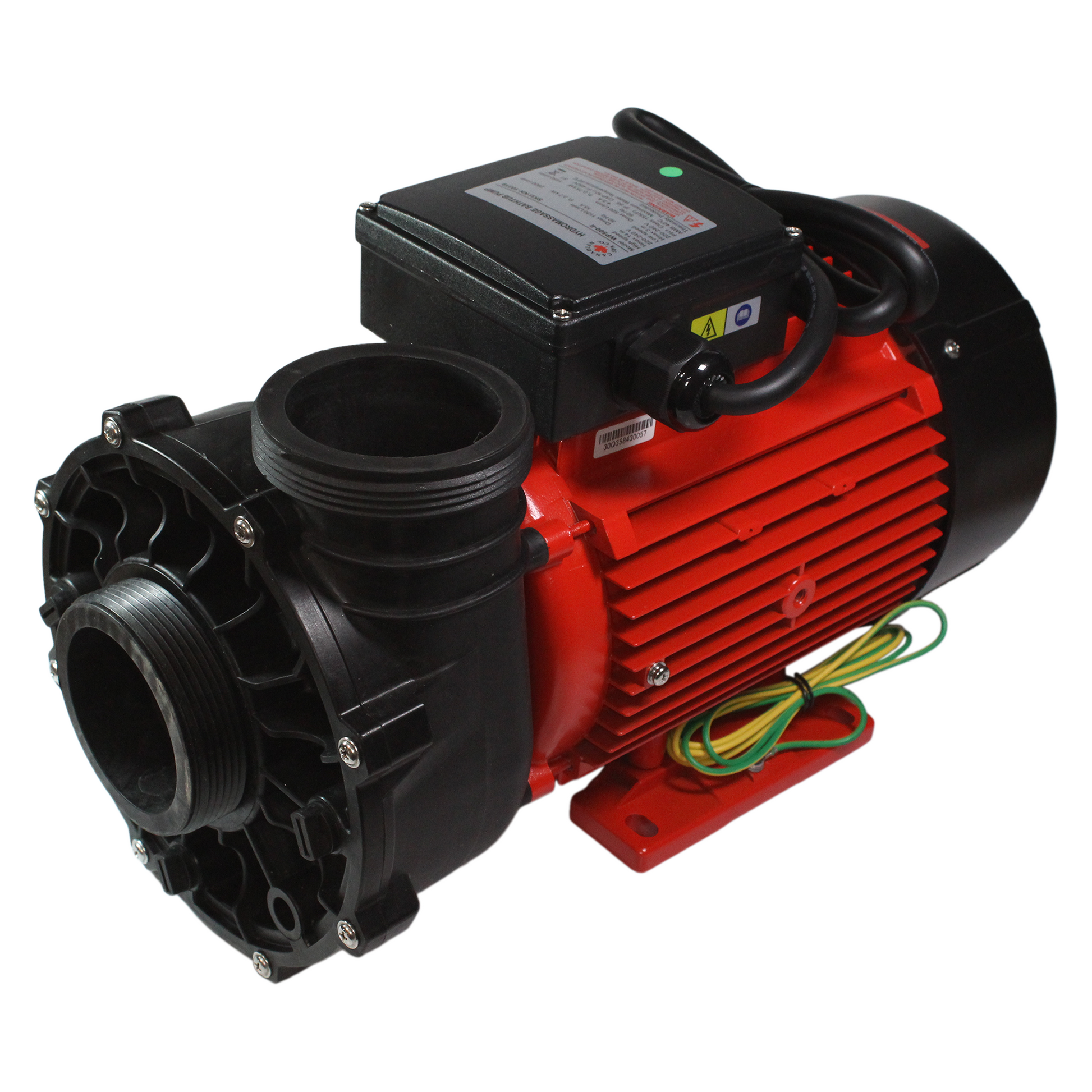

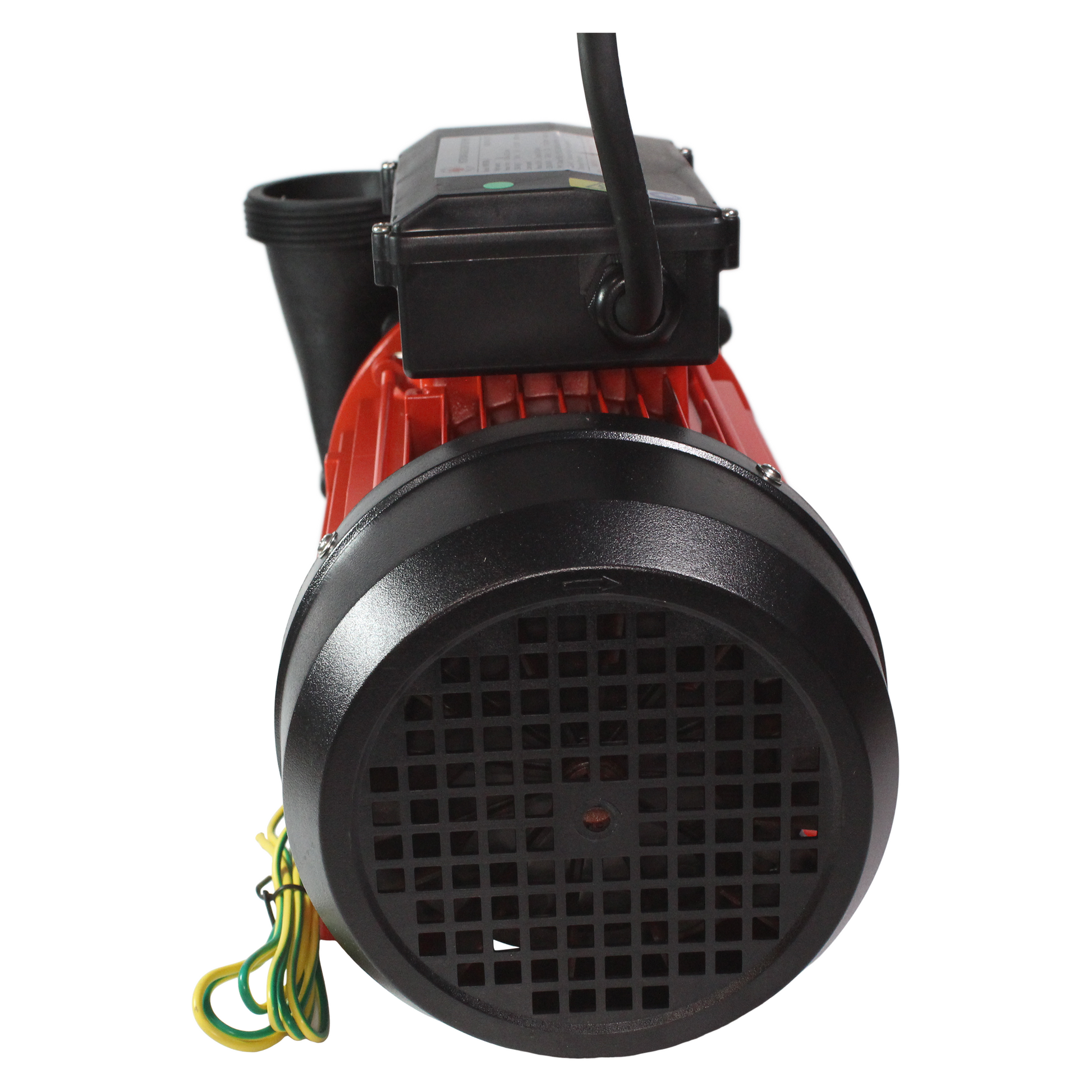

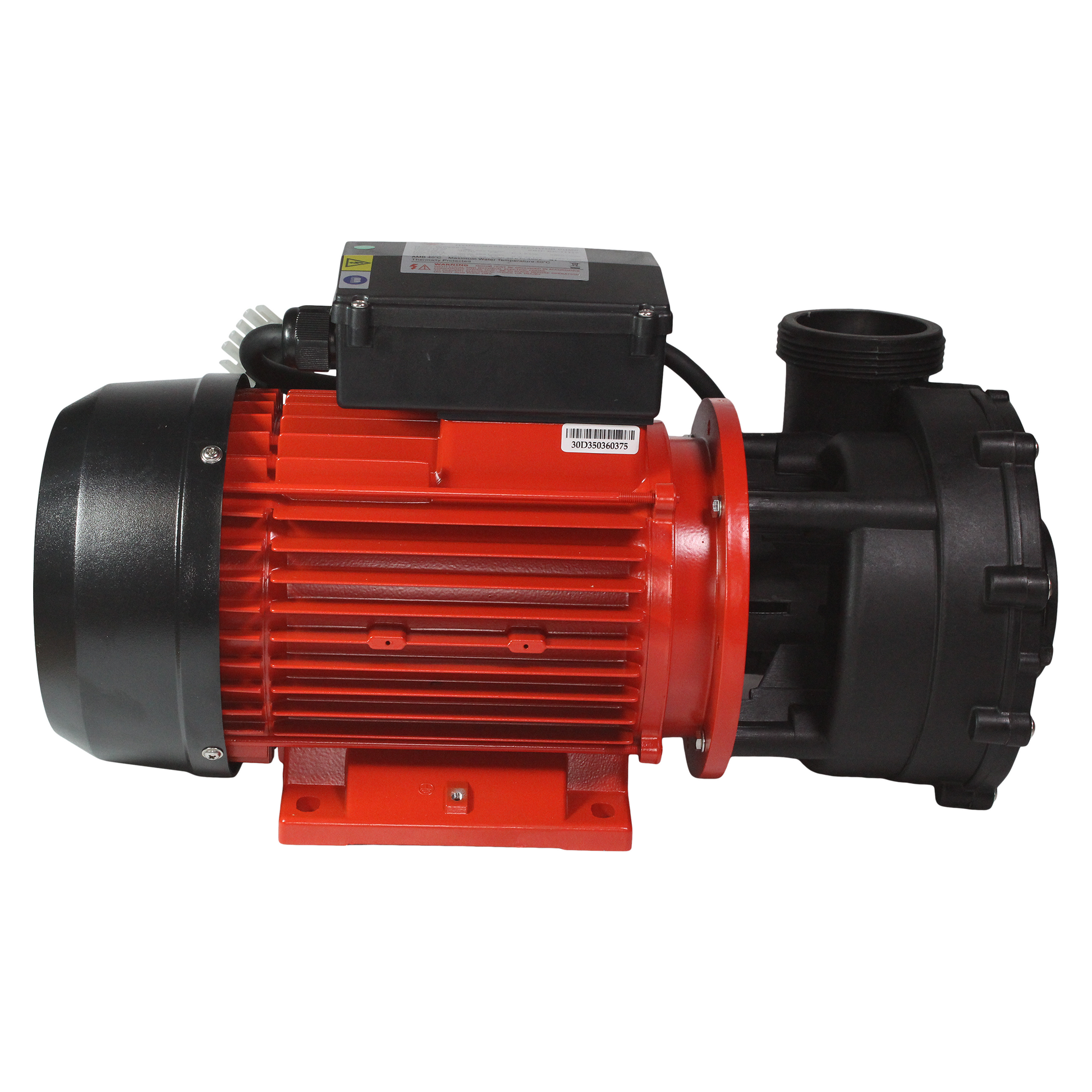

5HP Canadian Spa WP500-11 Pump - 2 speed comes with a 2.5” x 2.5” wet end
Specialized version with a 2.5-inch suction connection and a 2.5” flow outlet. Used ONLY on Canadian Spas.
Canadian Spa pumps provide value for money with HIGH performance. They can be used in place of more expensive pumps.

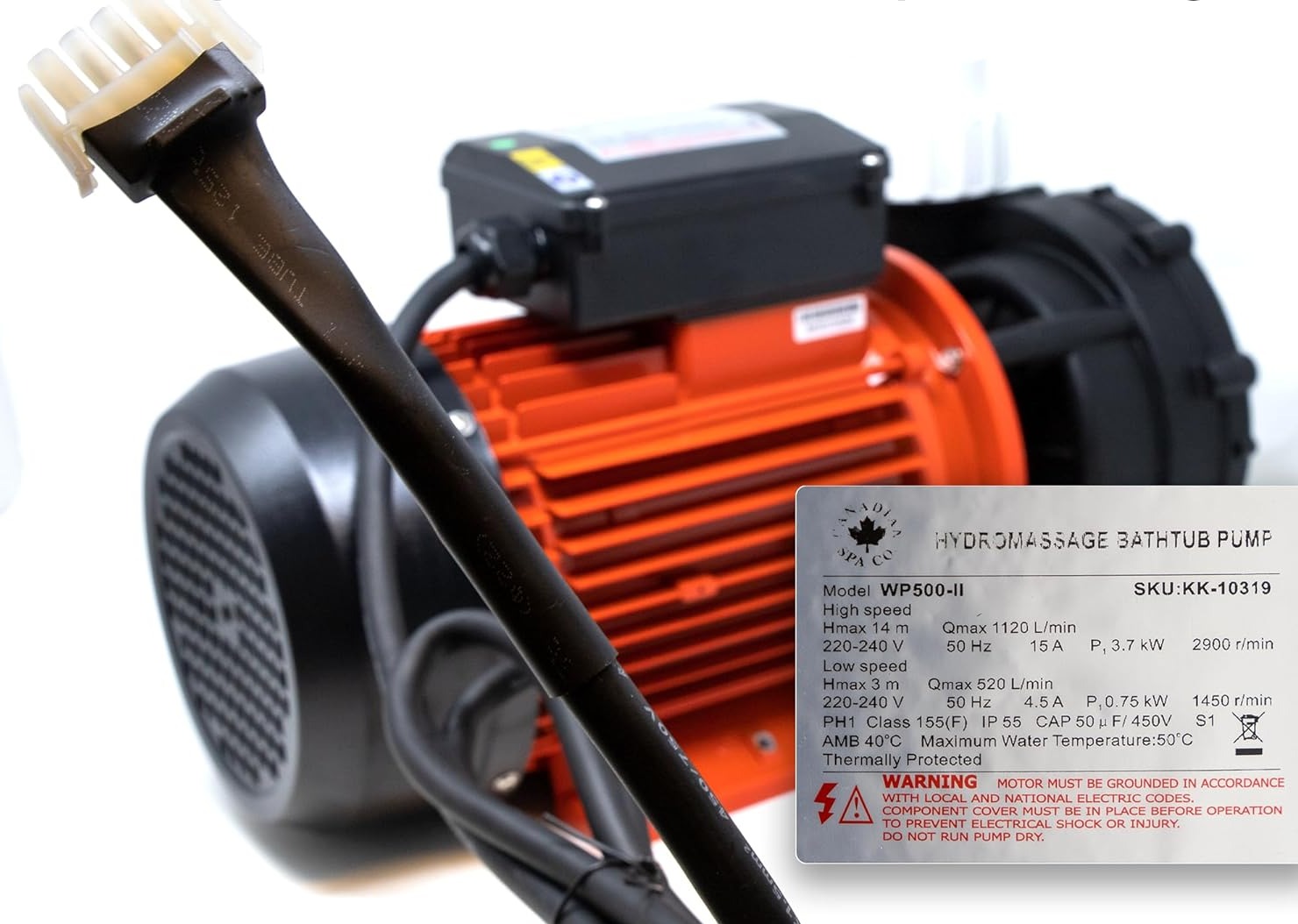

CANADIAN SPA CO. Massage Pump "Big Red" 5PS WP500-II
CANADIAN SPA CO. Massage Pump "Big Red" 5PS WP500-II

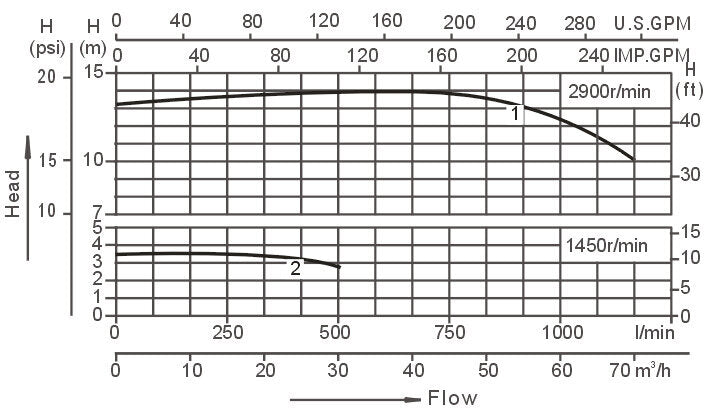

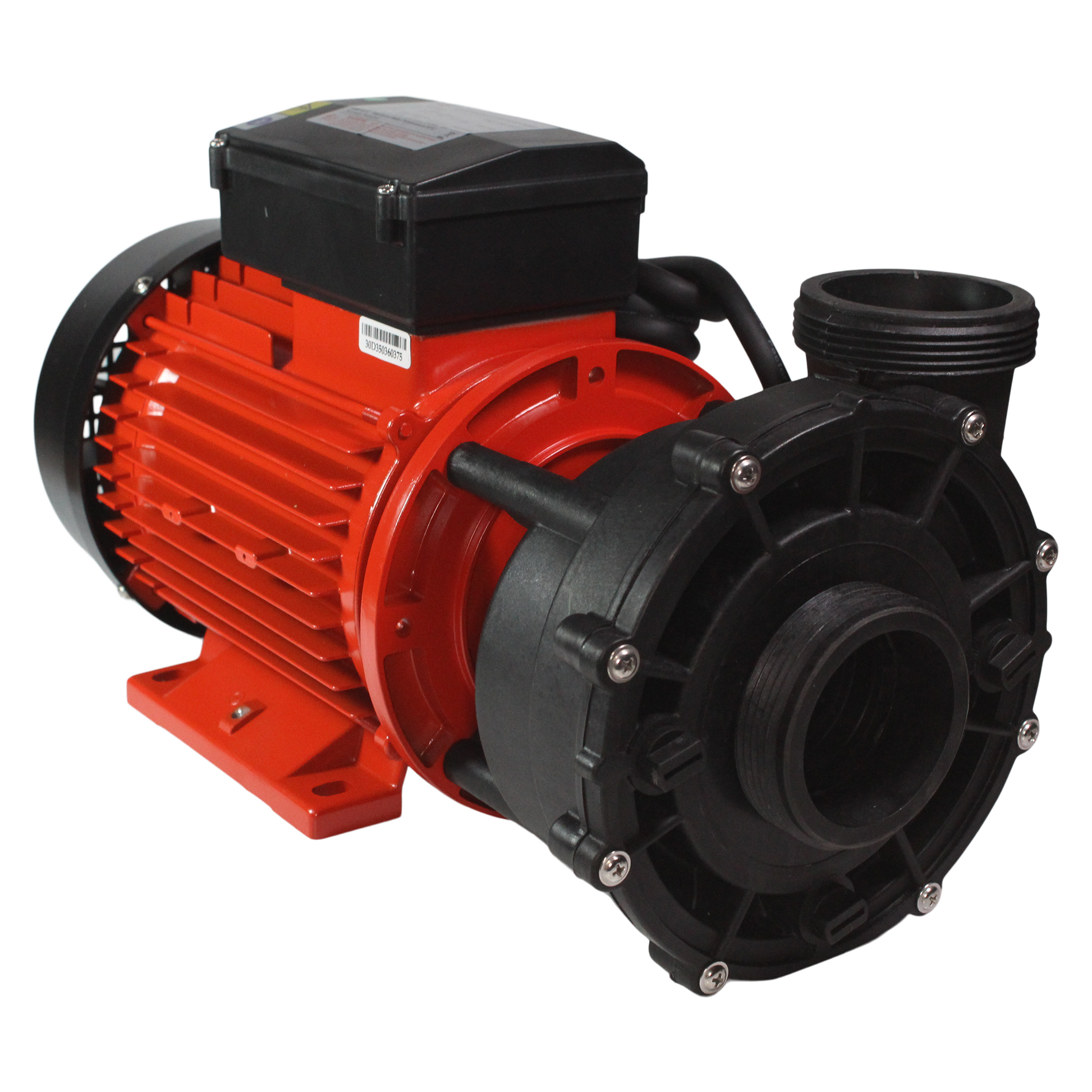

Our Big Red massage pump is a super-strong high-performance whirlpool pump with a connection from 2.5 to 2.5 inches. The 2-stage whirlpool massage pump ensures a constant and powerful water transport and thus an effective massage. The pump head of this pump is specially made for our hot tubs. The pump is "state of the art" in the whirlpool area with 2 connections of 2.5 inches, because so a lot of water can really get into the jets for the massage. The maximum flow rate is 1120 liters per minute.
Full control is in your hands. Choose between a gentle, calming current or a powerful, dynamic flow of water. With two speed settings, you can customize your relaxation or refreshment as you wish.
The pump works quietly in the background while you protect the environment and your wallet. The easy connection to your hot tub's filtration system makes the installation process a breeze. In addition, the massage pump is durable and energy efficient.

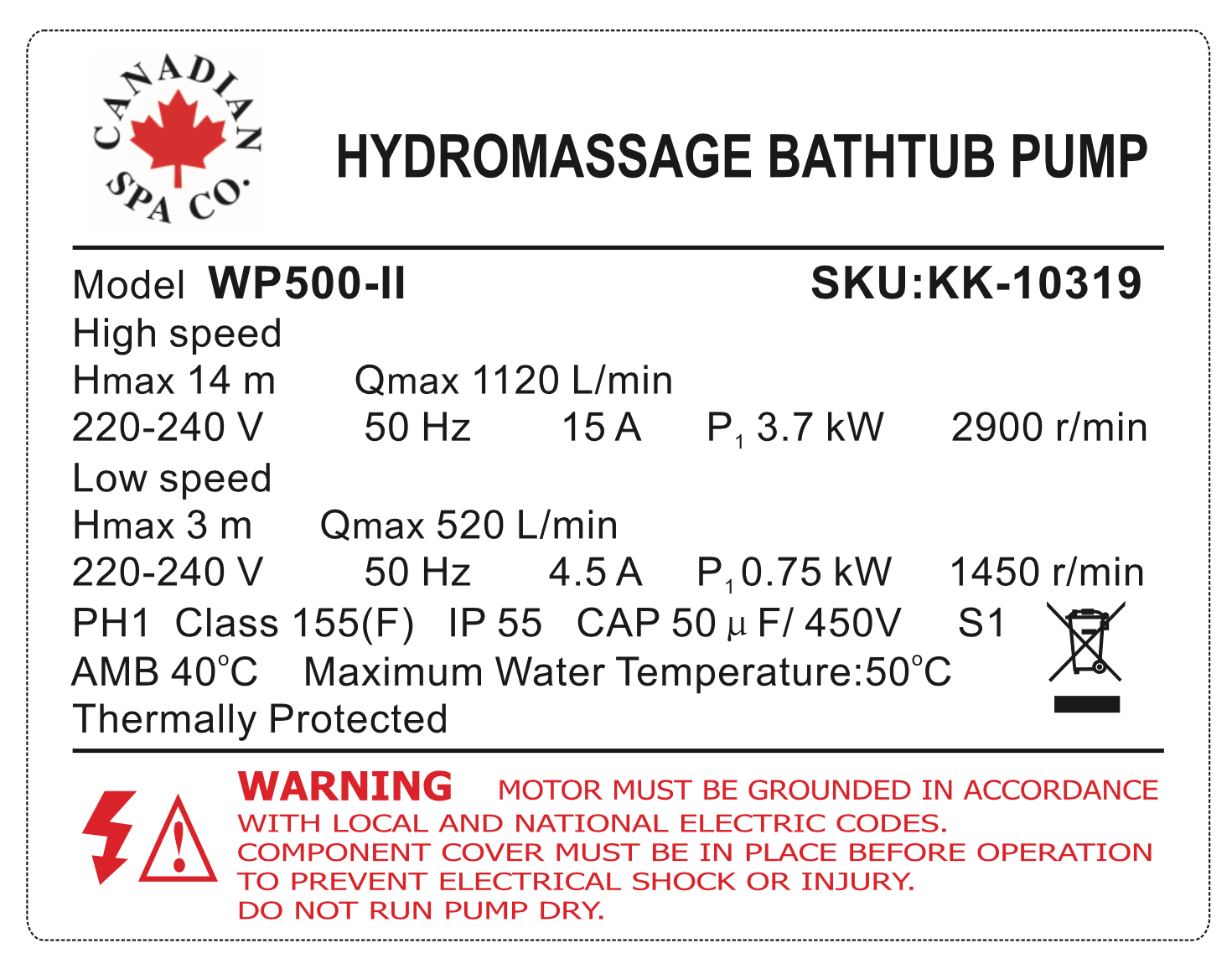

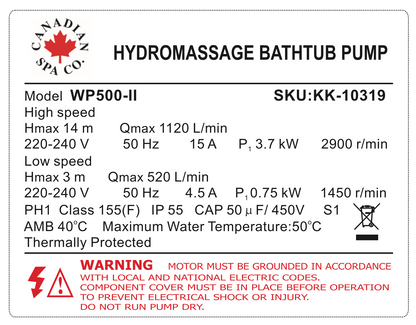

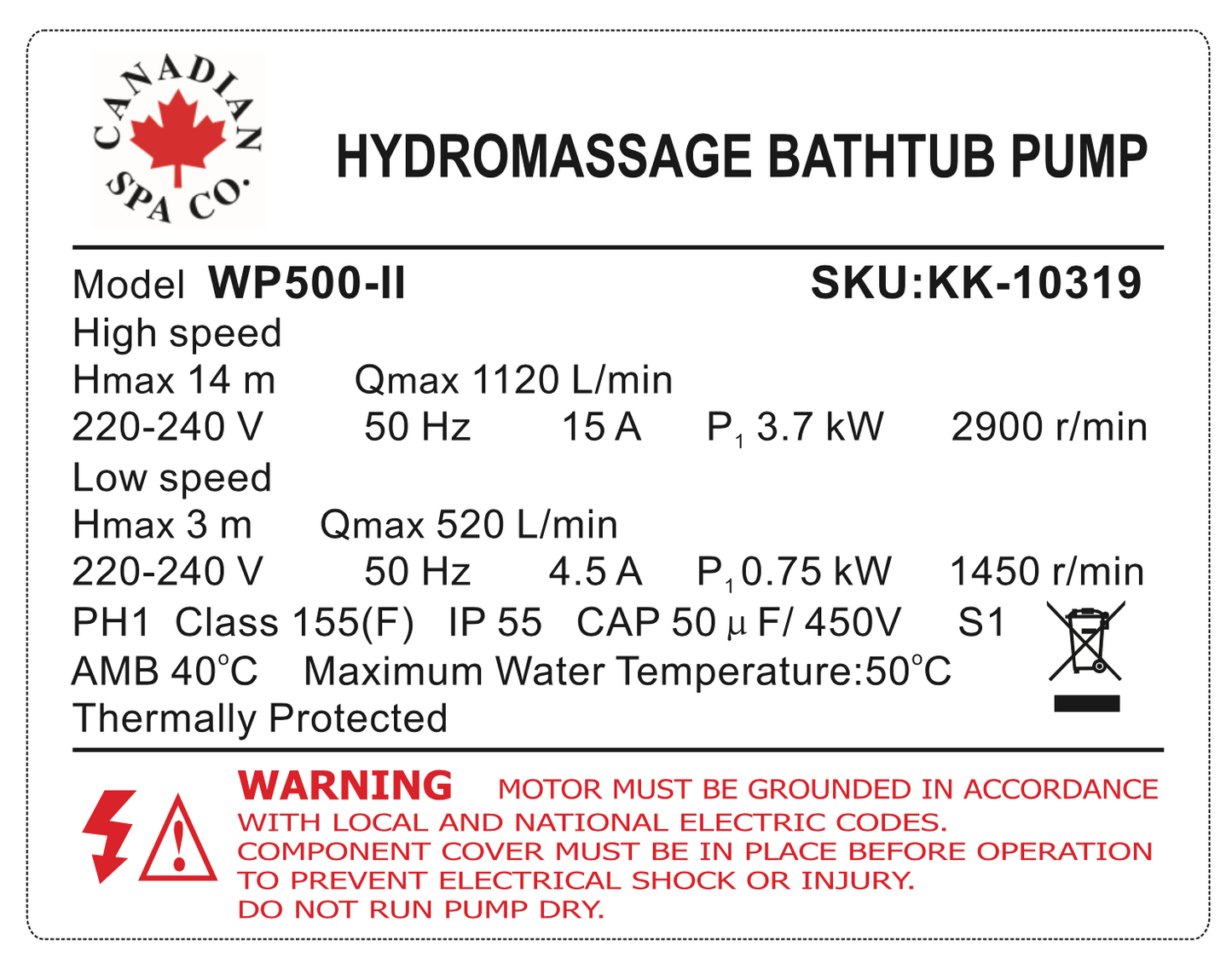

- Power reference: 5.0 HP 2 speed
- Power:Volts: 230 Hz: 50 Amps Low / High Speed: 3.2 / 10.0 RPM Low / High: 4.5 /15.0

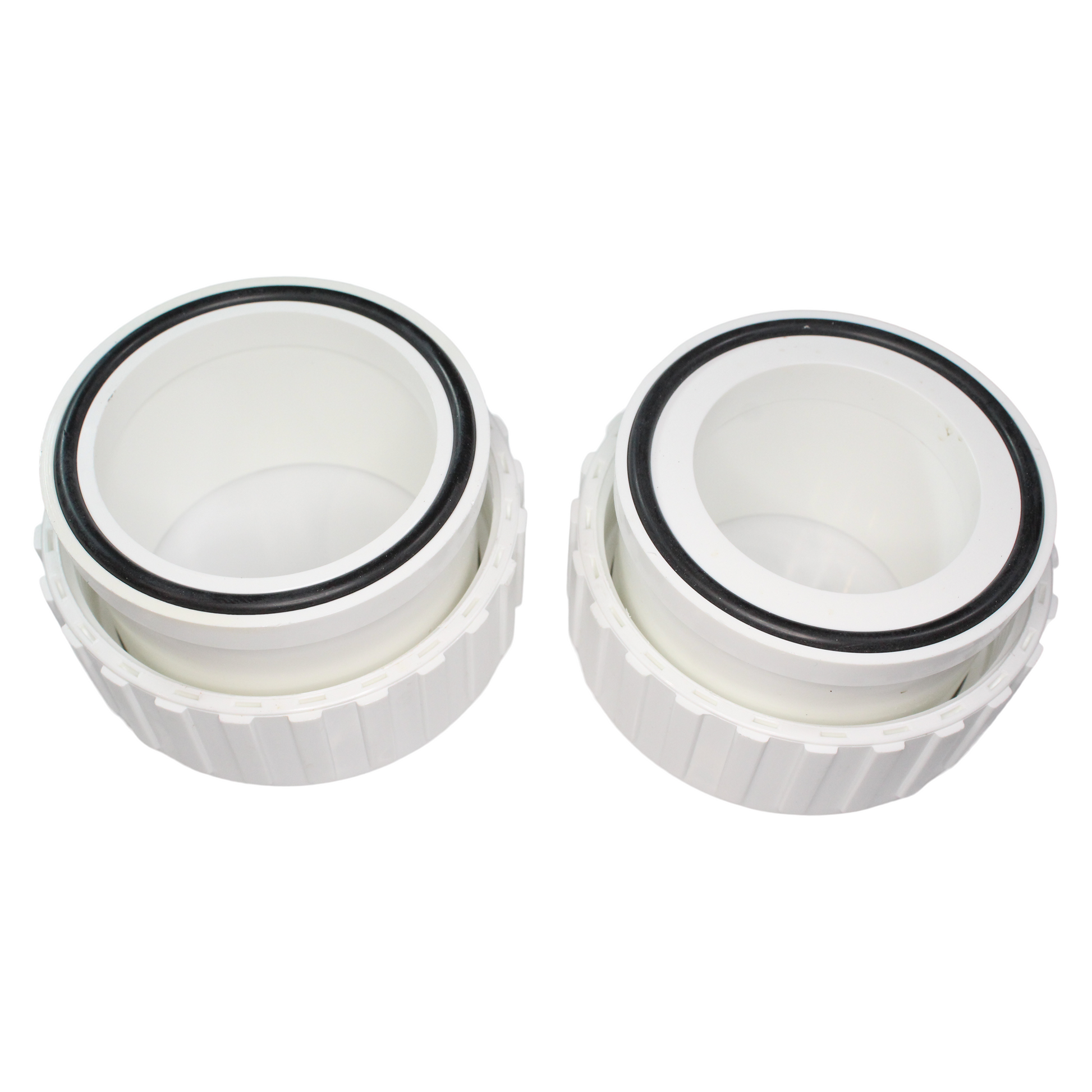

- Plumbing connections: 2.5 inch
- Electrical connections: Comes with plain 4 core cable attached. 2 x Phase, 1 x Common Neutral + Earth.
- Dimensions: 435 mm Height: 261 mm Depth: 209mm
- Alberta parts
- Cambridge parts
- Erie parts
- Grand Bend parts
- Kingston parts
- London parts
- Niagara parts
- Thunder Bay parts
- Toronto parts
- Vancouver parts
- Victoria parts
- Winnipeg parts
- 13ft St Lawrence parts
- 16ft St Lawrence parts
- 20ft St Lawrence parts
Not sure which model you have? Find your model and serial number, or contact our support team.
Buying and support guide
We supply the Big Red LX 5HP 2-Speed Pump WP500-II with clear specs and UK support. Before you order, check it suits your spa model, size, connector type, power supply and access. This helps you avoid delays and returns.
Replacing a part? Match it to your spa's model and year where you can. For pumps, control packs, heaters, jets, covers, filters, topsides and plumbing, check the part number and connection type. Compare delivery time, warranty and support as well as price.
Running costs matter as much as the price you pay. Energy use, insulation, cover condition, filters and water care all affect long-term value. Replacing worn parts early and keeping the water moving and filtered can save on repairs.
