Gecko YJ3 Control Pack ( direct replacement for Gecko YJ2 Control pack )

£369.00

Reduced More Stock on the Way

Including VAT

Free UK Delivery

Gecko YJ3 Control Pack has replaced YJ2

Gecko IN.YJ3 V3 Control Box tech sheet

The Gecko in.yj-3-V3 control system, the successor to the V2 version, is designed for small spas, offering enhanced functionality and greater flexibility. While maintaining the core features of its predecessor, the V3 version introduces LED indicators for troubleshooting and integrates the in.mix system for advanced light management.

This system is paired with the heat.wav.yj heater and comes equipped with three 230V relays, indicated by the number "3" in its name, allowing it to manage up to three spa components (note that a two-speed pump requires 2 relays).

Features:

Compact Design: The in.yj-3-V3 is exceptionally compact, making it perfect for tight installation spaces. It can even be mounted in a "portrait" orientation, adding versatility to its placement.

Common Relay Configurations:

A two-speed pump and a single-speed pump or blower

A circulation pump and a two-speed pump

One circulation pump and two single-speed pumps

A circulation pump, a single-speed pump, and a blower

A circulation pump can be paired with three single-speed pumps (or two single-speed pumps and a blower) if the pump runs 24 hours a day.

The system also includes:

12V DC output for a projector

230V output for an ozonator

Auxiliary 230V output for additional accessories, such as a music system

Communication ports: One for the main keyboard and additional ports for an auxiliary keyboard (e.g., in.k300), in.stik, or in.touch2.

Configuration is straightforward, done through the keyboard by selecting one of the pre-programmed options. If you have any questions about the setup or specific configurations, feel free to contact us for assistance.

Power Supply Options: The system is pre-configured for single-phase power but can also be configured with two phases, allowing you to distribute spa components across two circuits. For specific power configurations, please consult the guide or contact us during your order placement.

Control Box (IN.YJ-3 V3)

Specification	Value

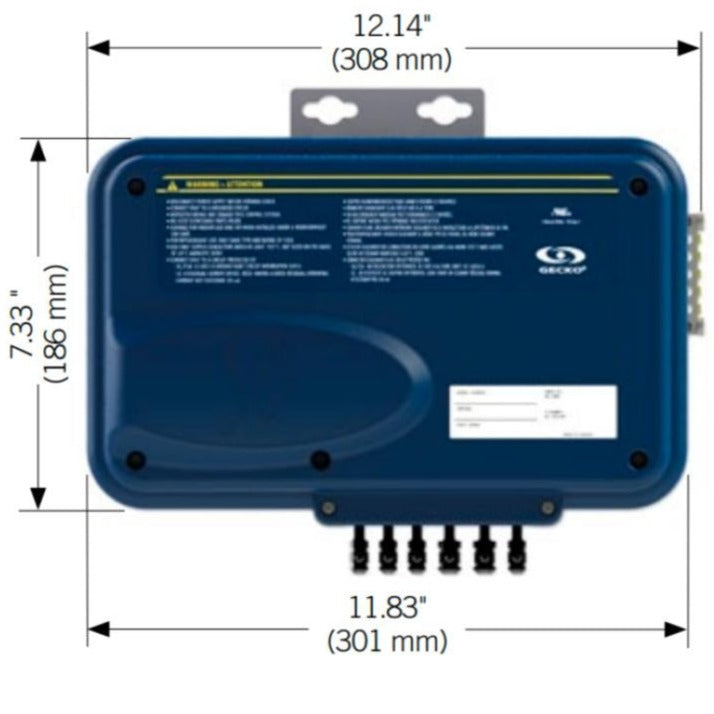

Dimensions (W x H x D)	308mm x 186mm x 96mm
Enclosure Material	High-impact plastic
IP Rating	IPX5 (watertight)
Heater Connection	2" socket union sleeves
Mounting Options	Portrait or landscape orientation
Operating Temperature	0°C to 58°C (32°F to 136°F)
Storage Temperature	-25°C to 85°C (-13°F to 185°F)
Humidity Range	Up to 85% RH, non-condensing

Topside Panel (IN.K300)

Weight: 1.75KG

Compatible Models:

Gecko Systems

Main Control Panels: in.k8, in.k35, in.k200, in.k300, in.k336, in.k450, in.k500, in.k600 (single interface only), in.k800, in.k1000, in.k1001

Auxiliary Control Panels: in.k120

Panel Model	Compatible	Notes
IN.K8	✅ Yes	8-key overlay panel
IN.K200	✅ Yes	LED display, 4 keys
IN.K300	✅ Yes	LCD display, 4 keys (included)
IN.K336	✅ Yes	Colour LCD, 5 keys
IN.K450	✅ Yes	LCD display, 7 keys
IN.K500	✅ Yes	Colour LCD, 7 keys
IN.K600 (simplified)	✅ Yes	LCD display, simplified interface only
IN.K800	✅ Yes	Colour LCD, 10 keys
IN.K1000 / IN.K1001	✅ Yes	Colour LCD capacitive touchscreen

Auxiliary Keypad

Panel	Compatible	Notes
IN.K120	✅ Yes	Auxiliary keypad for secondary location

in.touch 3 Compatibility

Control System	Compatible
IN.YJ V2	✅ Yes
IN.YJ V3	✅ Yes
IN.YE V2/V3	✅ Yes
IN.YT V2	✅ Yes

Gecko References:

Control box IN.YJ IN.YJ-3

Spa Control Pack Gecko in.YJ Spa Controller Pack 2KW Heater & Touch Pad - Picture 4 of 5

Electrical Requirements

Requirement	Specification
Supply Voltage	230V AC nominal
Frequency	50 Hz
RCD	Maximum 30mA residual current
Single-Phase	Up to 40A max
Dual-Phase	Up to 20A max per phase
Bonding	Copper conductor to bonding lugs

Mounting Options

The IN.YJ-3 can be mounted in two orientations:

Landscape - Standard horizontal mounting
Portrait - Vertical mounting for narrow spaces
