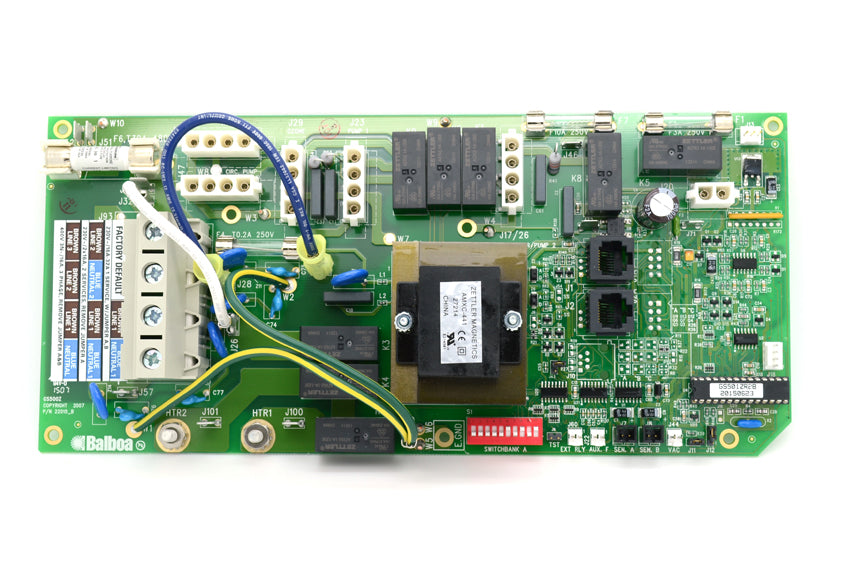

Balboa CPGS501z Circuit Board (55447-01)

£299.00

Reduced More Stock on the Way

Including VAT

Free UK Delivery

Mode 501Z
Depending on system configuration, mode changing may
not be available and will be locked in Standard Mode.

Mode is changed by pressing Temp, then Light.

STANDARD Mode maintains set temperature.
will be displayed momentarily when you switch into Standard Mode.

ECONOMY Mode heats the spa to the set temperature
only during filter cycles. will display when water temp is not current, and will alternate with water temp when the pump is running.

SLEEP Mode heats the spa to within 10°C/20°F of the set temperature only during filter cycles. will display when water temp is not current, and will alt

View full details

Buying and support guide

We supply the Balboa CPGS501z Circuit Board (55447-01) with clear specs and UK support. Before you order, check it suits your spa model, size, connector type, power supply and access. This helps you avoid delays and returns.

Replacing a part? Match it to your spa's model and year where you can. For pumps, control packs, heaters, jets, covers, filters, topsides and plumbing, check the part number and connection type. Compare delivery time, warranty and support as well as price.

Running costs matter as much as the price you pay. Energy use, insulation, cover condition, filters and water care all affect long-term value. Replacing worn parts early and keeping the water moving and filtered can save on repairs.

Looking for a whole new tub rather than a part? Compare hot tubs, swim spas and saunas by seating, hydrotherapy, who will use it and the space you have.

Helpful links

Quick questions

How do I check this part fits my spa?
Check the model name, model year, part number and connector style. If you're not sure, contact our support team before you buy.

Can you help with fitting?
Yes. For many products we can guide you through replacement and servicing, and tell you when a qualified technician is the better option.

Will this improve performance?
The right replacement part can improve reliability, water flow, heating and everyday performance.
