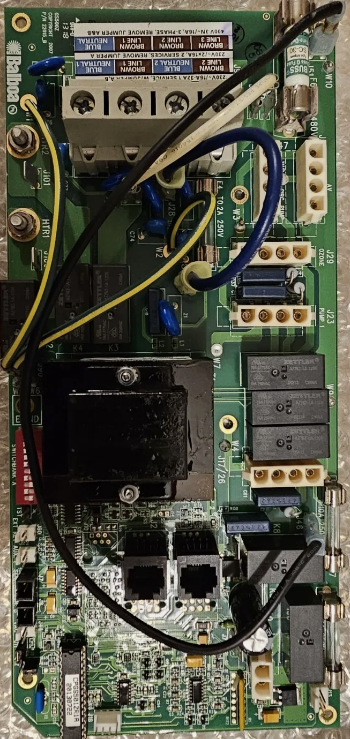

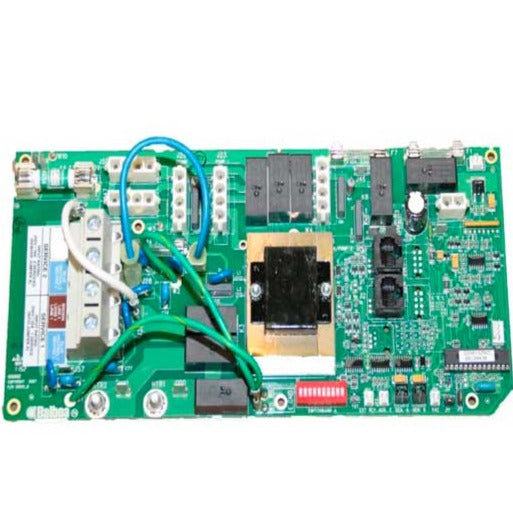

BALBOA GS501SZ Board

BALBOA GS501SZ Board

BALBOA GS501SZ Platine

• 1 circulation pump
• 1 two-speed pump
• 1 blower or a second 1-speed pump
• 1 Balboa ozone holder
• Voltage 230V

• N - CE - CB standards

Compatible Canadian Spa Topside Controls

Balboa VL701s 7 button Topside - p/n: 54112-02

The VL701S keypad is compatible with the Balboa GS501SZ, GS510SZ, GS511SZ and GS520SZ control systems. This is a very common keypad, with seven buttons in its standard configuration:

• Blower
• Mode
• Jets 1
• Jets 2
• Light
• Warm
• Cool

This is a Canadian Spa Co. Marked part and is only to be used in conjunction with there matching Topside Control

Mode 500SZ

Mode is changed by pressing   Warm or Cool, then pressing Mode

STANDARD Mode maintains set temperature.
will be displayed momentarily when you switch into Standard Mode.

ECONOMY Mode heats the spa to the set temperature
only during filter cycles.  will display when water temp is not current, and will alternate with water temp when the pump is running.

SLEEP Mode heats the spa to within 10°C/20°F of the set temperature only during filter cycles.  will display when water temp is not current, and will alternate with
water temp when the pump is running
